22PC-S/22PC-2CS

22PC-S/22PC-2CS

Features:

Pleat Height:15mm/20mm/25mm/35mm/45mm

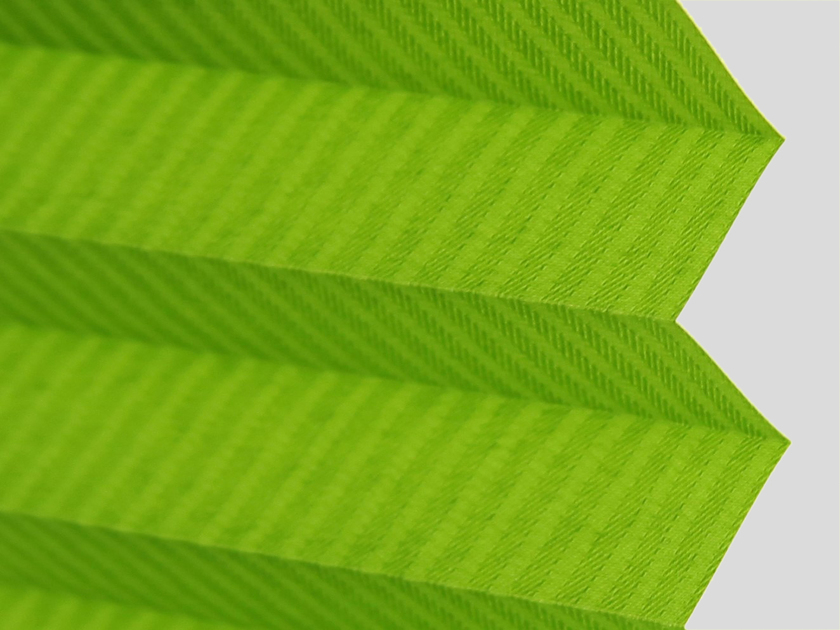

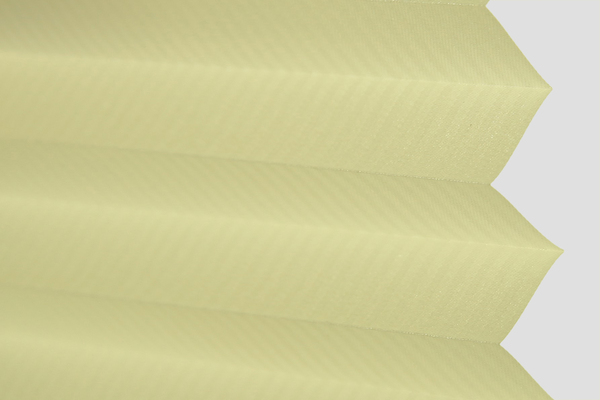

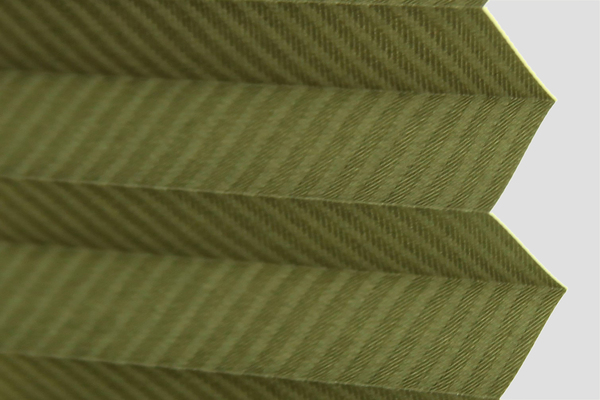

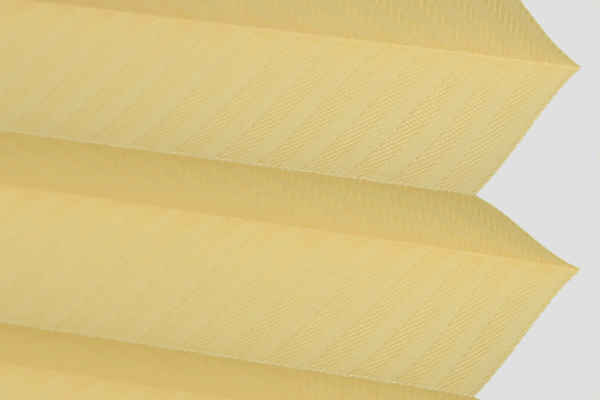

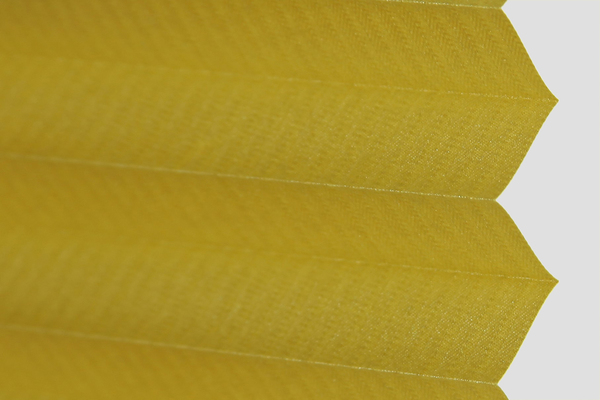

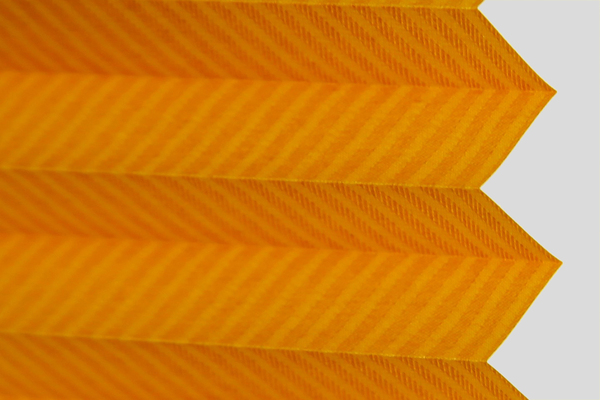

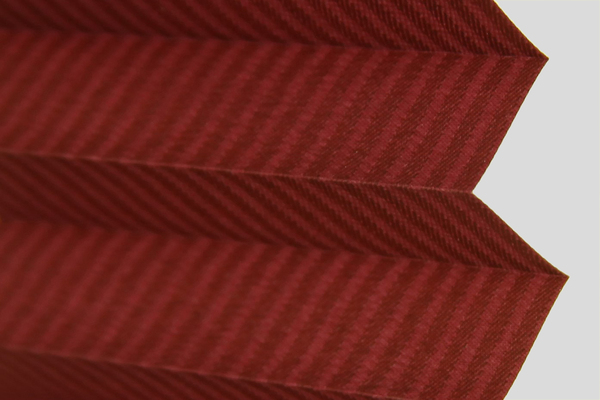

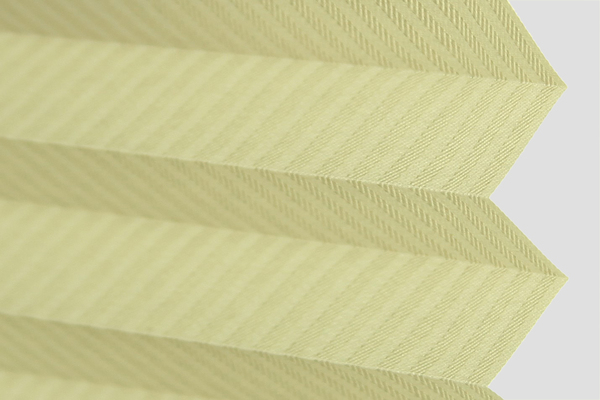

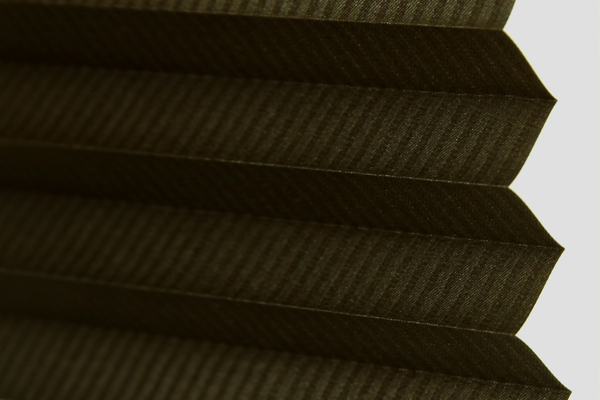

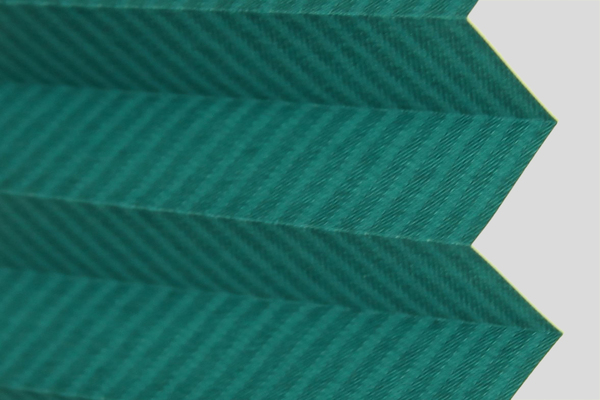

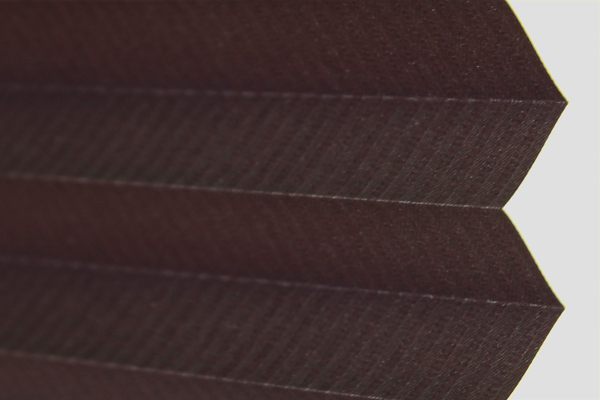

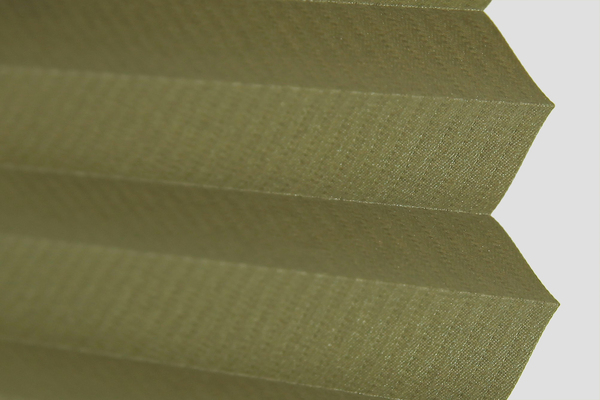

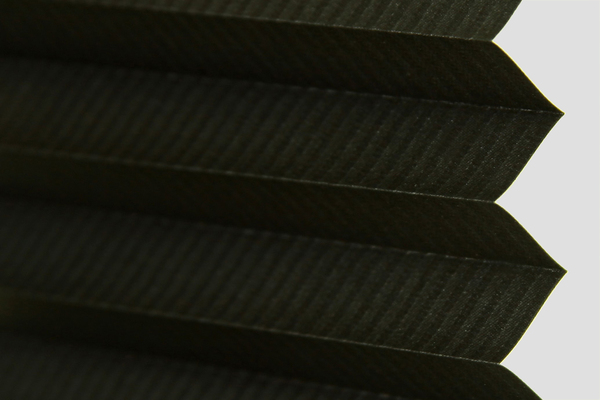

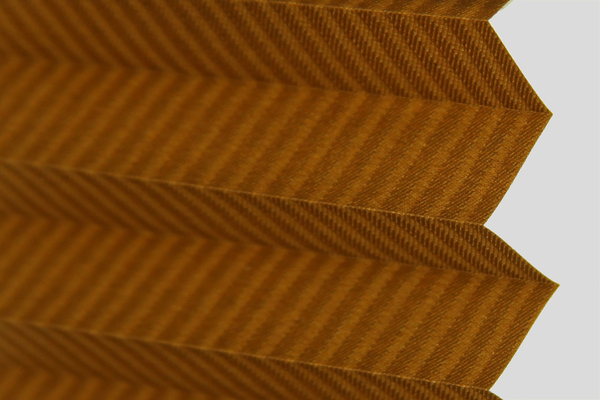

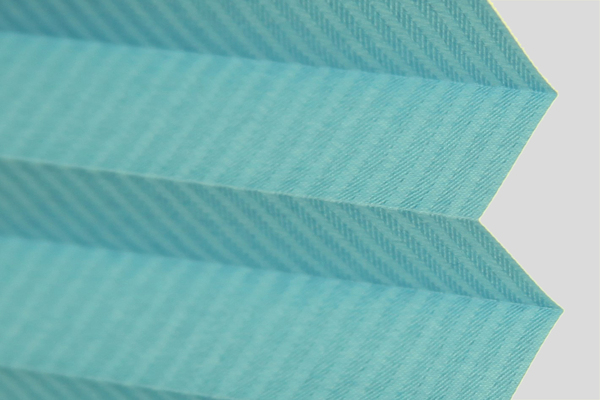

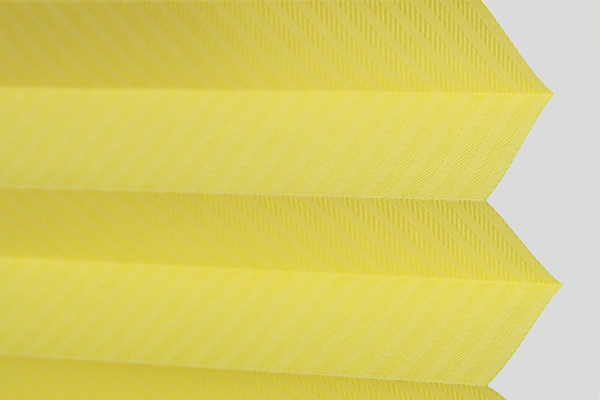

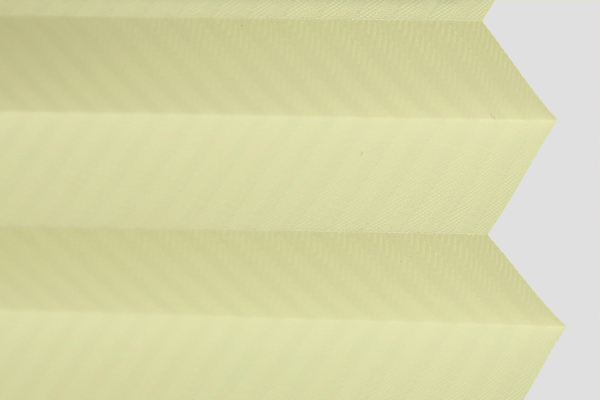

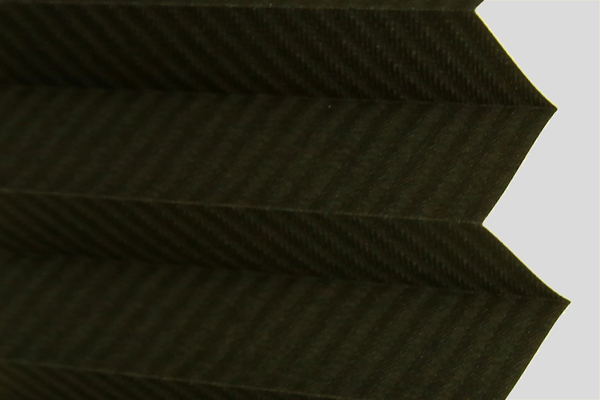

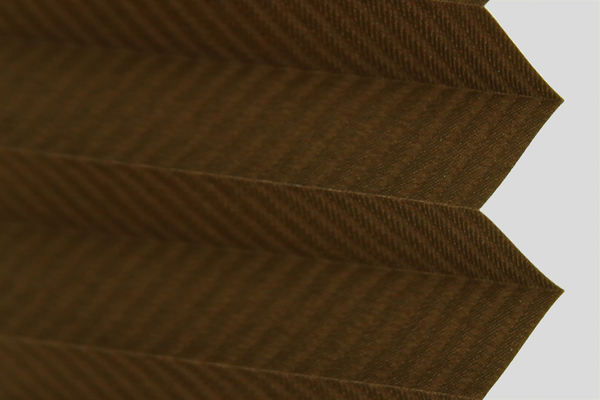

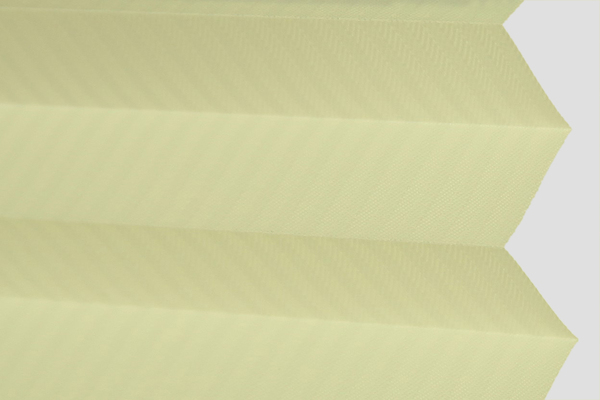

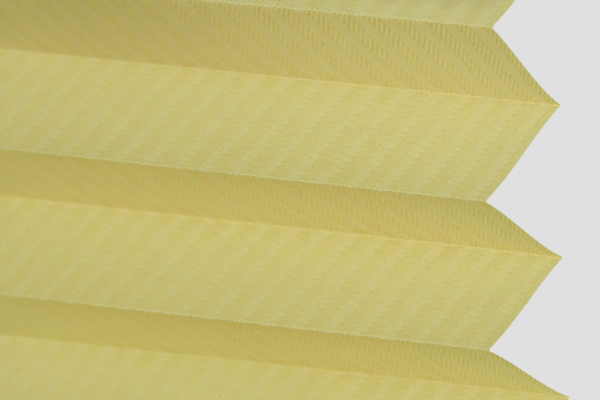

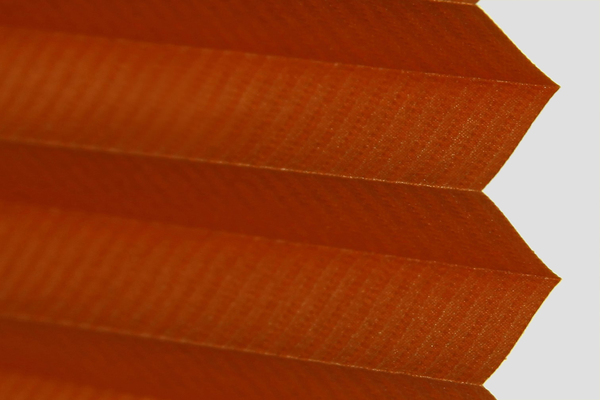

Available Color

22PC-S-0101-20 22PC-S-0102-20 22PC-S-0103-20 22PC-S-0104-20 22PC-S-0201-20 22PC-S-0203-20 22PC-S-0205-20 22PC-S-0501-20 22PC-S-1303-20 22PC-S-1305-20 22PC-S-1601-20 22PC-S-1801-20 22PC-S-1802-20 22PC-S-1803-20 22PC-S-2603-20 22PC-2CS-0101-20 22PC-2CS-0102-20 22PC-2CS-0201-20 22PC-2CS-0203-20 22PC-2CS-0204-20 22PC-2CS-0501-20 22PC-2CS-1801-20 22PC-2CS-2601-20

Product Description

22PC series use standard plain weave fabrics, after our environmental friendly coating and pleating, the fabrics of 22PC series have very good performance in color and appearance. Color is vivid and stable and flatness of pleating is appreciated by our clients. Pearlized coated with Merck's Pearlize powder from Germany. It's complies with Oeko-Tex 100 and GREENGUARD standard.

22PC-S: Basic dim out pleated shades fabrics, good in pleating shape's recovery, and easy for the processing ( ok for cold knife). Totally 16 standard color.

22PC-2S: Pearlized coated in both sides, vivid color. Totally 20 standard color,Totally 8 standard color.

Customized color available, standard pleated height is 20 mm, but 10 to 50 mm is also available, maximum width is 3000 mm.

Features

Specifications

Series	22PC-S	22PC-2CS
Features	dim-out	dim-out
Composition	100% Polyester	100% Polyester
Coating Material	PU	PU
Standard Width	2400mm	2400mm
Mesh Weight	Abt.130g/m²	Abt.135g/m²
Thickness	Abt.0.2mm	Abt.0.2mm
PVC Content	Free	Free
Shading Rate	≥60%	≥70%
UV-Blocking	100%	100%
Color Fastness	≥5 Grade	≥5 Grade
Pvc Content	Not Detectable	Not Detectable
Extractable Metal Content	Not Detectable	Not Detectable
Sensitizing And Carcinogenic Content	Not Detectable	Not Detectable
Water Repellent Standard	——	——
Flame Retardant Standard	——	——

Production Process

Applicable System & Accessories

Day-night system	Up-Down matching system	Ball chain controlled system with auto-lowering function

It combines the function of rope system and auto-lowering characteristics, perfectly unity of the day blinds and night blinds.	It combines the function of rope system and auto-lowering characteristics, perfectly unity of the day blinds and night blinds.	Just with a soft pull of the ball chain, then the blind will fall down with uniform speed by itself.
TDBUaccordion system	cordlock system	Arc-shaped motorized system

It uses a special circular rope in the system. Just with a soft push of the handle, then it can adjust the sun-light according to the needs. Besides, this system is also an expansion and interpretation to the skylights.	Color match design: Headrail, bottom rail, fabric, cord and knob are color totally matched and coordinated. High quality cord makes the blinds endurable and long life. Can be controlled at right side or left side in accordance with diversified requirement. This system is also available for day and night blinds.	Motorized system adopts high-end imported motors, with multiple advantages such as low noisy, low energy consumption and long service life. It can also provide you the best comfortable control experience, with different control method such as wall switch, remote wireless, and intelligent control method.
