  • 28HX-1802-38
  • 28HX-W/28HX-W-B/28HXL-W/28HXL-W-B

    28HX-W/28HX-W-B/28HXL-W/28HXL-W-B

    BASIC CULTURE

    Features:



    Pleat Height:20mm/25mm/38mm/45mm

Product Description

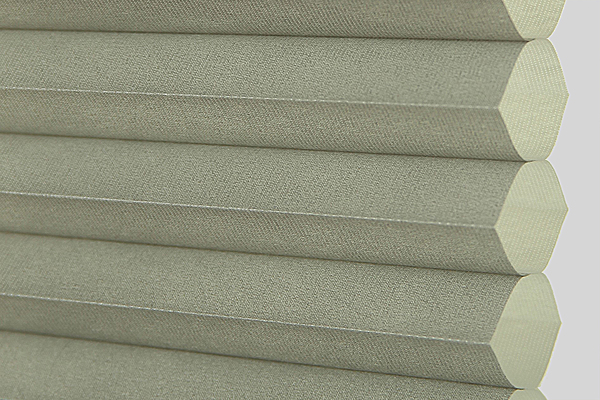

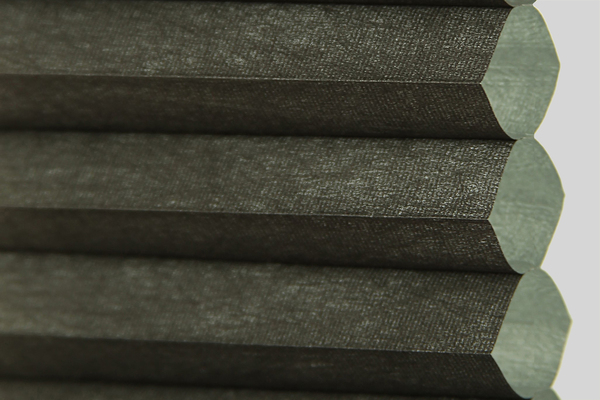

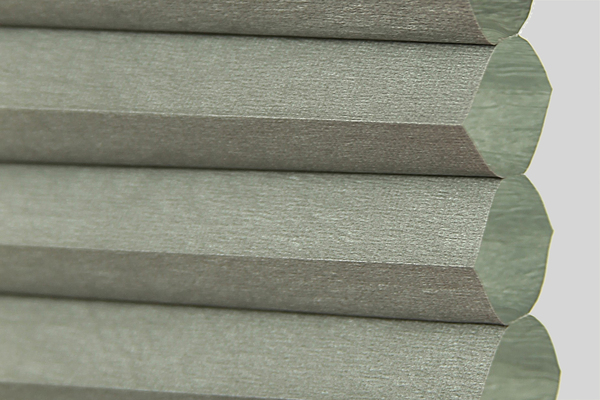

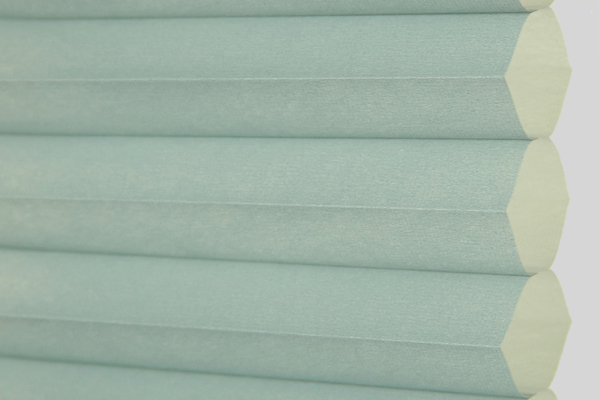

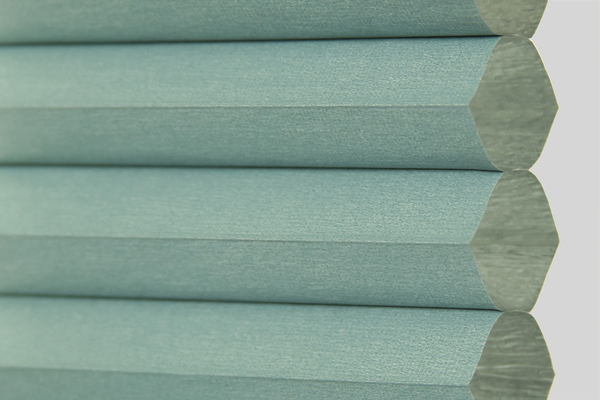

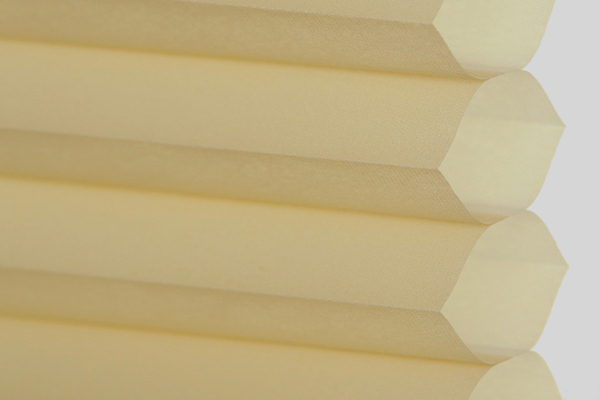

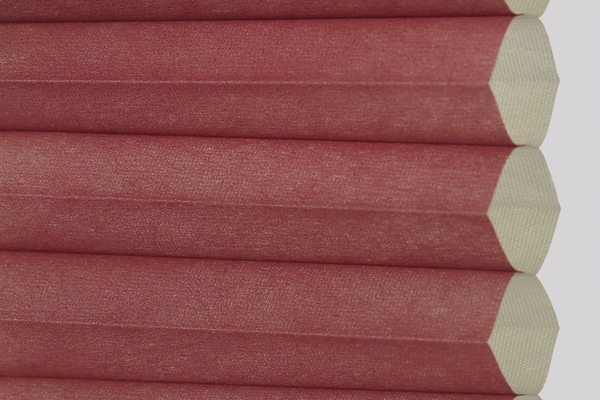

The series is non-woven fabrics. The fabrics has outstanding performance in energy saving and sound absorption.  it complies with Oeko-Tex 100 and GREENGUARD standard. Cold knife can be applied in processing.

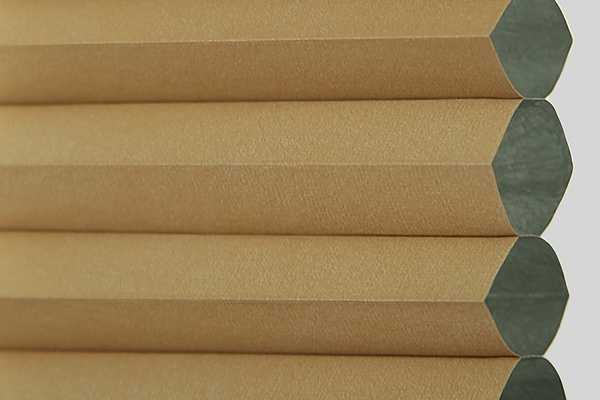

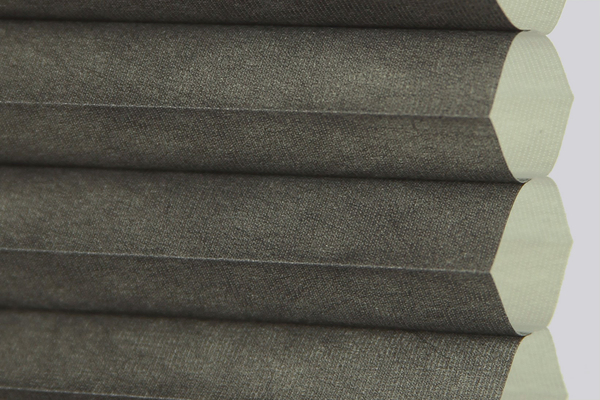

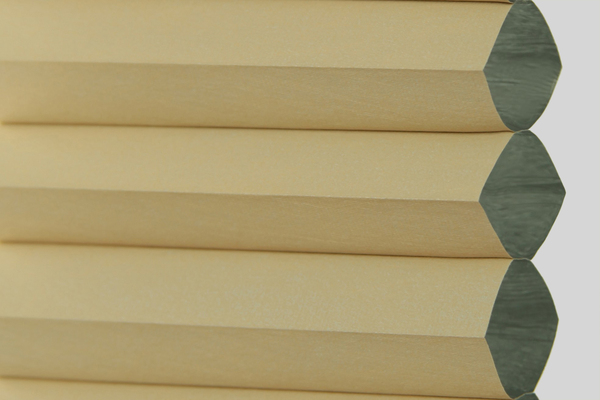

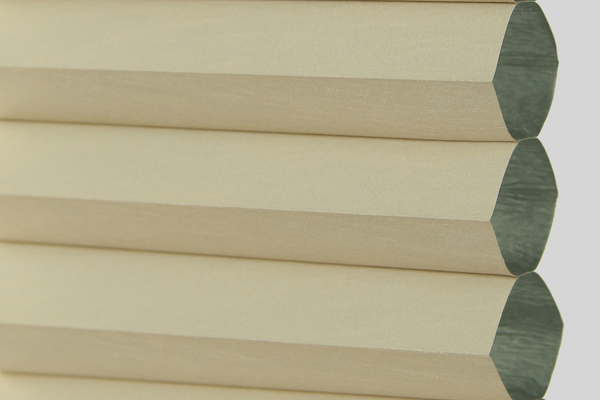

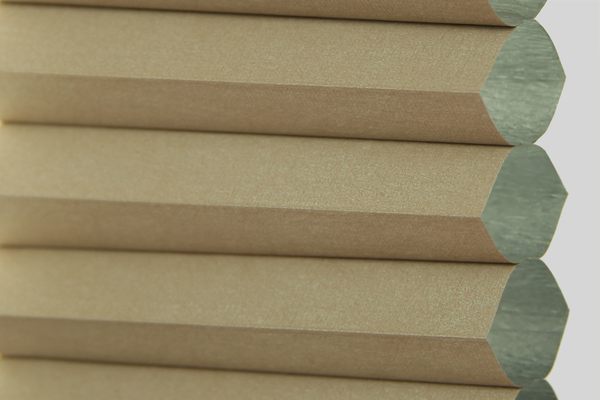

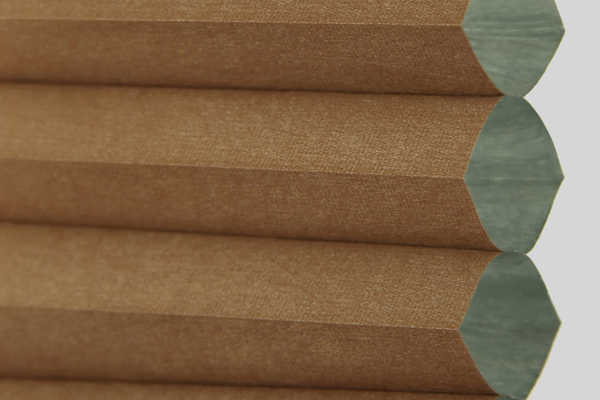

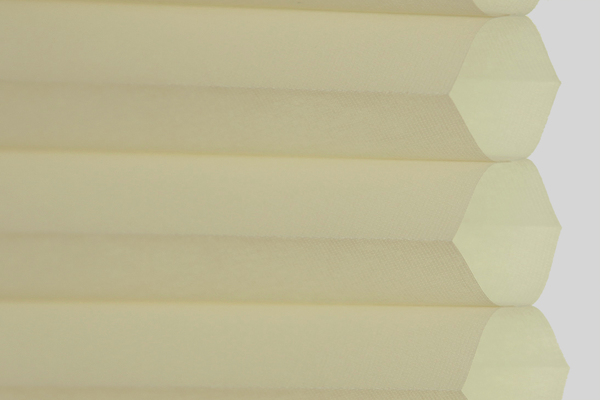

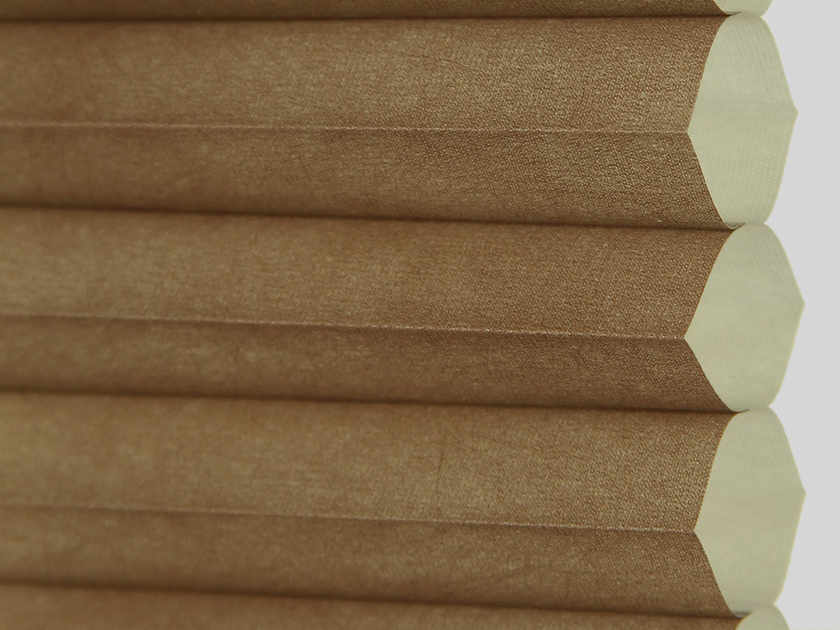

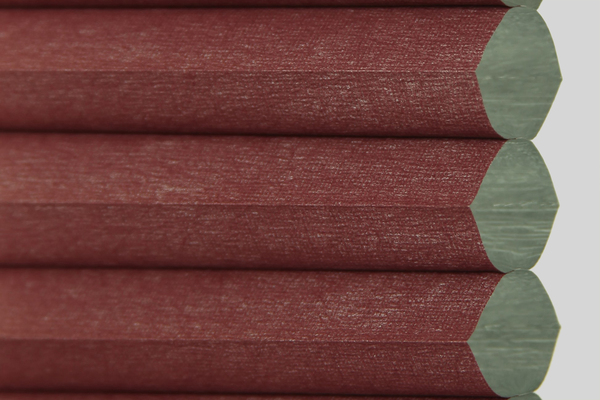

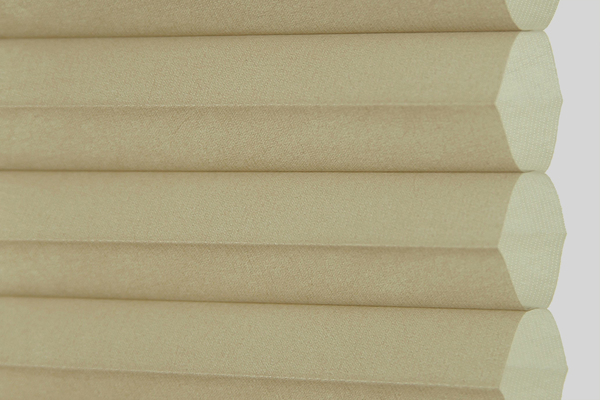

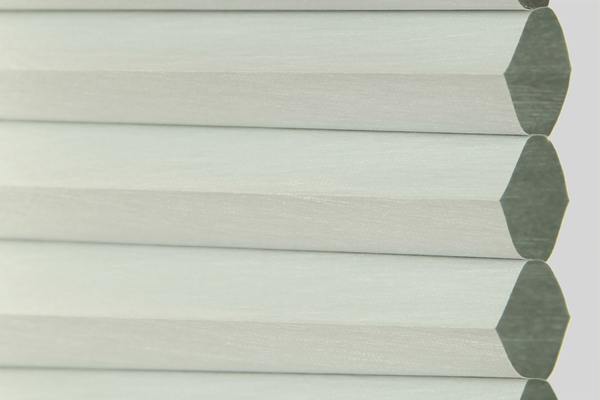

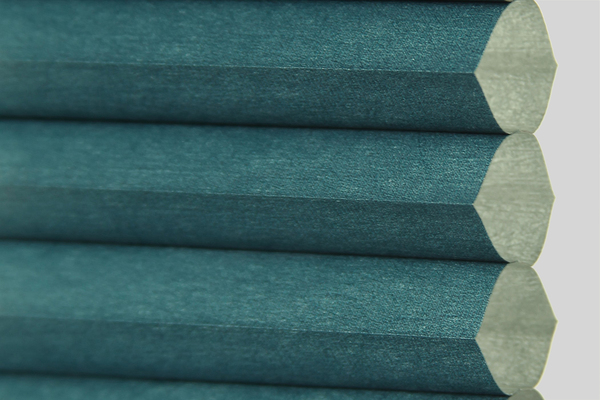

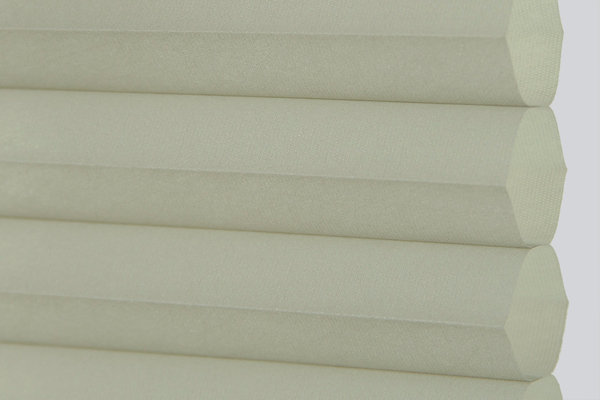

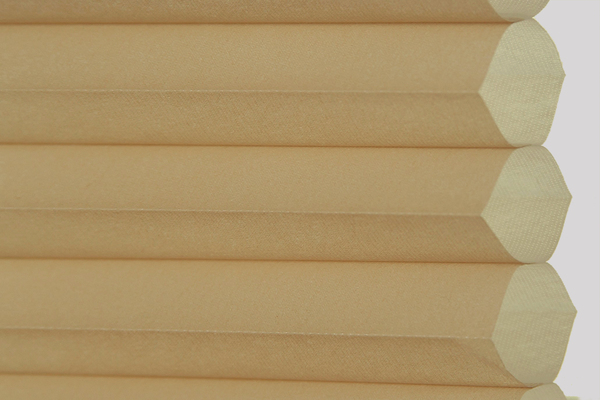

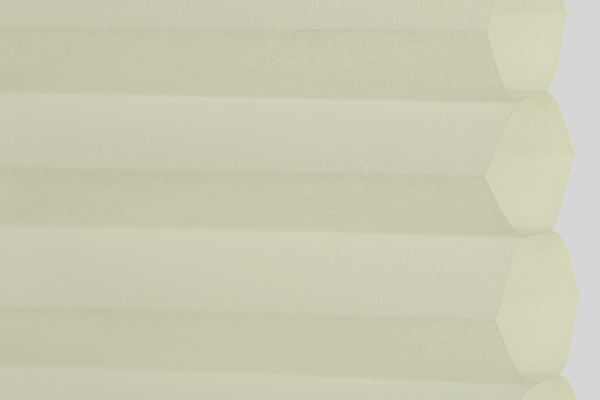

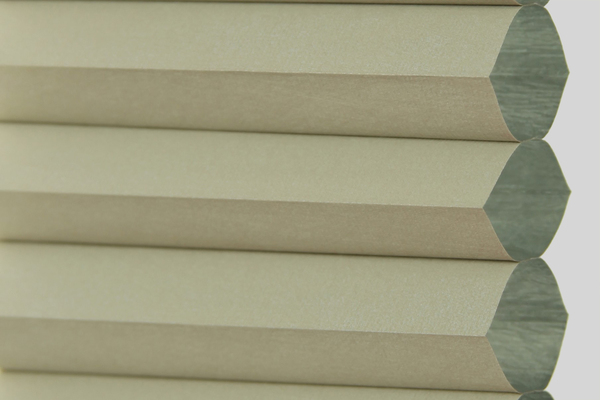

28HX: Dim out single cell honeycomb shades fabrics.

28HX-B: Black out single cell honeycomb shades fabrics.

The back side of 28HX-W and 28HX-W-B are in white color, but you can also choose to be the same color as the front side(-U).

Standard Width is 3000 mm, 4 type of different pleats height: 25 mm / 32 mm / 38 mm / 45 mm.

 Low MOQ requirment.

Features



Specifications

Series

28HX-25

28HX-B-25

28HX-38

28HX-B-38

Features

dim out

black out

dim out

black out

Fibre Composition

100% Polyester

100% Polyester

100% Polyester

100% Polyester

Pleated Height

2.6cm

2.6cm

3.8cm

3.8cm

Width

3000mm

3000mm

3000mm

3000mm

Thickness

Abt. 0.25mm

Abt. 0.25mm

Abt. 0.25mm

Abt. 0.25mm

Weight

Abt. 160g/m2

Abt. 160g/m2

Abt. 150g/m2

Abt. 150g/m2

Torsion

0

≤1%

0

≤1%

UV-Blocking

100%

100%

>99%

100%

Shading Rate

>50%

100%

>50%

100%

Color Fastness

≥4-5 Grade

≥4-5 Grade

≥4-5 Grade

≥4-5 Grade

PVC Content

Not Detectable

Not Detectable

Not Detectable

Not Detectable

Formaldehyde Content

Not Detectable

Not Detectable

Not Detectable

Not Detectable

Extractable Metal Content

Not Detectable

Not Detectable

Not Detectable

Not Detectable

Sensitizing And Carcinogenic Content

Not Detectable

Not Detectable

Not Detectable

Not Detectable

Water Repellent  Standard

*1

*1

*1

*1

Flame Retardant Standard

--

--

--

--


*1  Water repellent function customization available

*2  Flame Retardant function customization available

Production Process

Applicable System & Accessories

Day-night system Up-Down matching system Ball chain controlled system with auto-lowering function
It combines the function of rope system and auto-lowering characteristics, perfectly unity of the day blinds and night blinds. It combines the function of rope system and auto-lowering characteristics, perfectly unity of the day blinds and night blinds. Just with a soft pull of the ball chain, then the blind will fall down with uniform speed by itself.
TDBUaccordion system cordlock system Arc-shaped motorized system
It uses a special circular rope in the system. Just with a soft push of the handle, then it can adjust the sun-light according to the needs. Besides, this system is also an expansion and interpretation to the skylights.

Color match design: Headrail, bottom rail, fabric, cord and knob are color totally matched and coordinated.
High quality cord makes the blinds endurable and long life. Can be controlled at right side or left side in accordance with diversified requirement.

This system is also available for day and night blinds.
Motorized system adopts high-end imported motors, with multiple advantages such as low noisy, low energy consumption and long service life. It can also provide you the best comfortable control experience, with different control method such as wall switch, remote wireless, and intelligent control method.



Application



Packaging Information









Fabric length: 30m + 5m per carton

MOQ: 300m / color

Pleated Height:20mm

Carton L W H
Packing Size 96" 16" 1.6"

Pleated Height:25mm

Carton L W H
Packing Size 96" 16" 2.0"

Pleated Height:35mm

Carton L W H
Packing Size 96" 16" 2.4"
